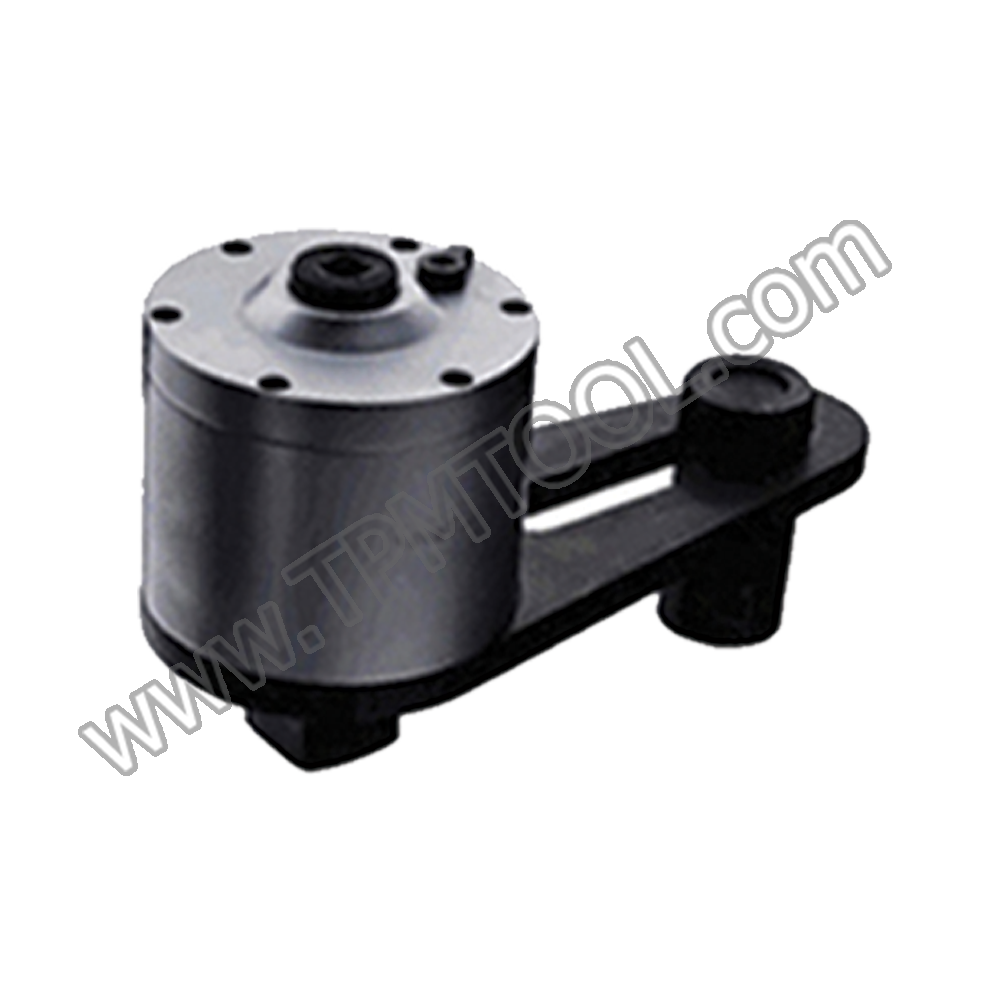

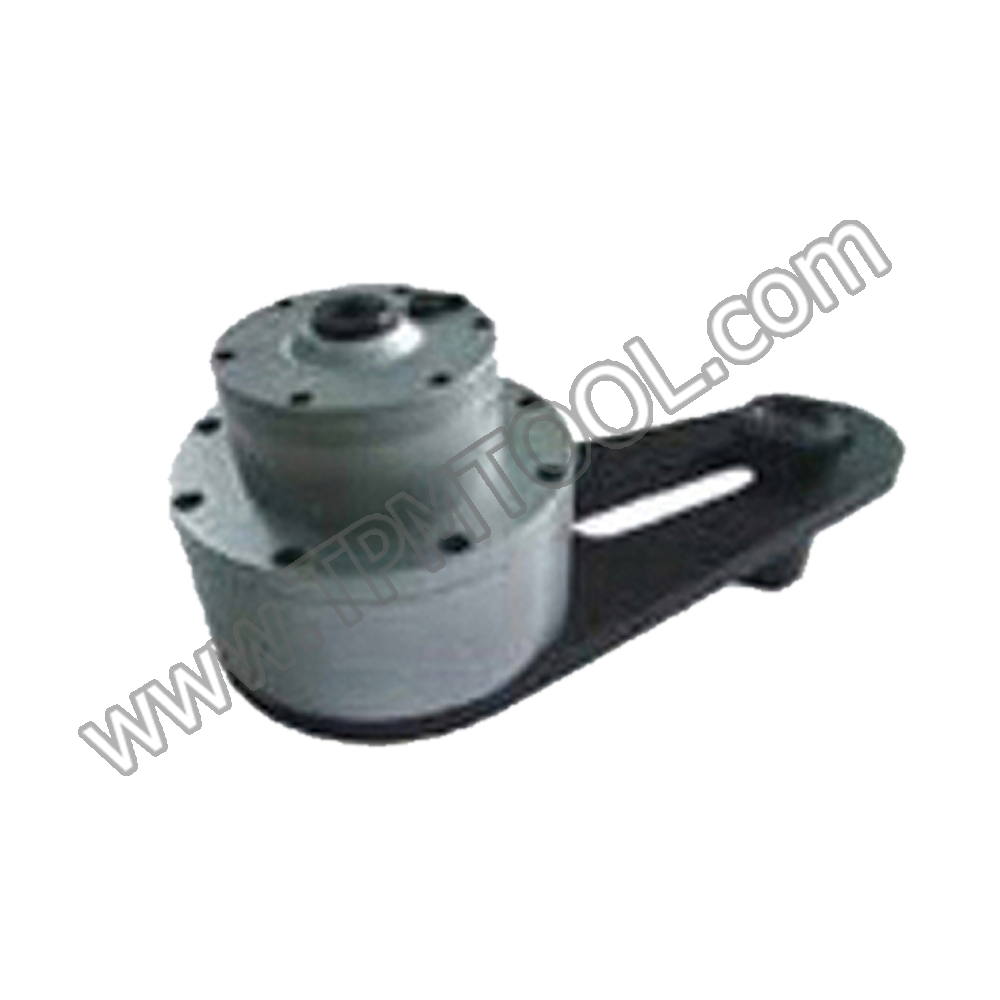

NOVATORK ประแจทดปอนด์ M Series

สินค้า
*Different ratio options.
*Alloy steel constructure,heavy duty.
*Ratio accuracy:+/-5%
*Strong,safe Anti Wind-Up Ratchet available for more than 1500N.m multiplier for safe and comfortable operation.
*A wide range of alternative reaction style are available making the Handtorque adaptable to many applications.
*Easy to adjust anti reaction arm position.

Rate : 25:1
Torque Range : 2500Nm/1875Lb.ft
Input Drive : 1/2"
Output Drive : 1.1/2"
A : 118mm
B : 150mm
C Min : 82mm
C Max : 196mm
Tool Weight : 8.9Kg
Reaction Arm Weight : 8.9Kg
-(ไม่รวม VAT)
เพิ่ม
*Different ratio options.
*Alloy steel constructure,heavy duty.
*Ratio accuracy:+/-5%
*Strong,safe Anti Wind-Up Ratchet available for more than 1500N.m multiplier for safe and comfortable operation.
*A wide range of alternative reaction style are available making the Handtorque adaptable to many applications.
*Easy to adjust anti reaction arm position.

Rate : 25:1
Torque Range : 3500Nm/2600Lb.ft
Input Drive : 1/2"
Output Drive : 1.1/2"
A : 118mm
B : 164mm
C Min : 82mm
C Max : 196mm
Tool Weight : 9.1Kg
Reaction Arm Weight : 9.1Kg
-(ไม่รวม VAT)
เพิ่ม
*Different ratio options.
*Alloy steel constructure,heavy duty.
*Ratio accuracy:+/-5%
*Strong,safe Anti Wind-Up Ratchet available for more than 1500N.m multiplier for safe and comfortable operation.
*A wide range of alternative reaction style are available making the Handtorque adaptable to many applications.
*Easy to adjust anti reaction arm position.

Rate : 25:1
Torque Range : 4000Nm/3000Lb.ft
Input Drive : 1/2"
Output Drive : 1.1/2"
A : 118mm
B : 176mm
C Min : 82mm
C Max : 196mm
Tool Weight : 10Kg
Reaction Arm Weight : 10Kg
-(ไม่รวม VAT)
เพิ่ม
*Different ratio options.
*Alloy steel constructure,heavy duty.
*Ratio accuracy:+/-5%
*Strong,safe Anti Wind-Up Ratchet available for more than 1500N.m multiplier for safe and comfortable operation.
*A wide range of alternative reaction style are available making the Handtorque adaptable to many applications.
*Easy to adjust anti reaction arm position.

Rate : 25:1
Torque Range : 6000Nm/4500Lb.ft
Input Drive : 1/2"
Output Drive : 1.1/2"
A : 140mm
B : 214mm
C Min : 105mm
C Max : 254mm
Tool Weight : 18.3Kg
Reaction Arm Weight : 18.3Kg
-(ไม่รวม VAT)
เพิ่ม
*Different ratio options.
*Alloy steel constructure,heavy duty.
*Ratio accuracy:+/-5%
*Strong,safe Anti Wind-Up Ratchet available for more than 1500N.m multiplier for safe and comfortable operation.
*A wide range of alternative reaction style are available making the Handtorque adaptable to many applications.
*Easy to adjust anti reaction arm position.

Rate : 25:1
Torque Range : 8000Nm/6000Lb.ft
Input Drive : 1/2"
Output Drive : 1.1/2"
A : 182mm
B : 228mm
C Min : 125mm
C Max : 294mm
Tool Weight : 28Kg
Reaction Arm Weight : 28Kg
-(ไม่รวม VAT)
เพิ่ม
